quality tubular UF membranes
Filtration Systems, Inc., offers Tubular Membranes as well as support products for membrane systems. Custom orders are welcome! Please contact us for pricing.

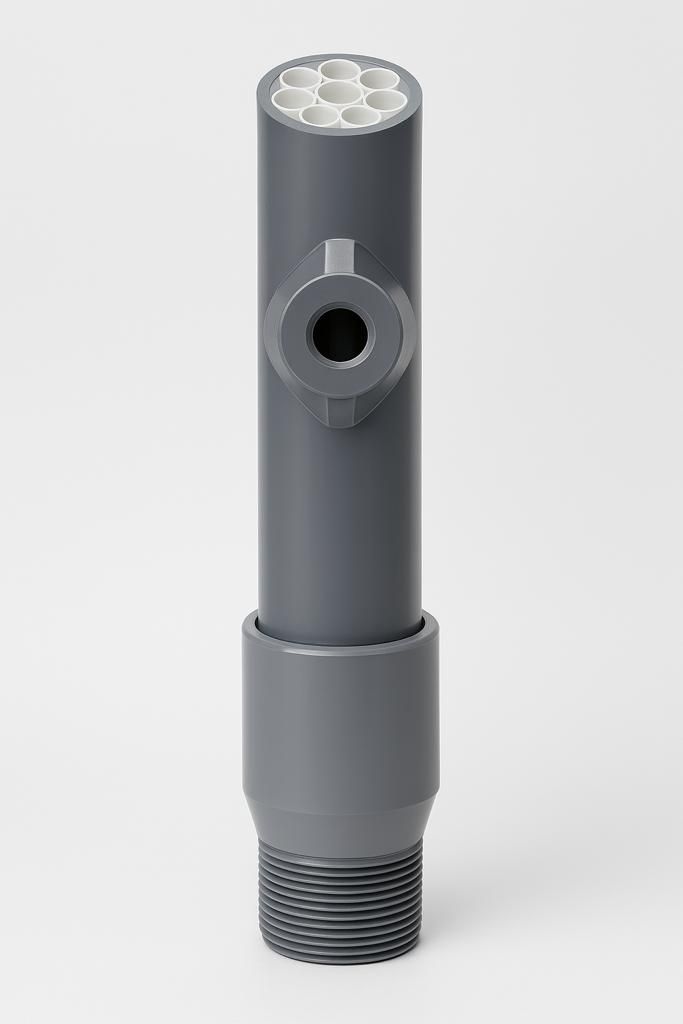

Septacor multi-module tubular UF membrane is a 100,000 NMWCO low pressure membrane process for water treatment that is designed to remove turbidity causing particles including those comprised of suspended solids, bacteria, colloidal matter and proteins. Schedule 40 PVC housing with 6.1 ft2 (2 IS A SQUARE) active membrane area. Maximum operating temperature rating of 130F .
PVDF Tubular Membrane
PVDF tubular UF membranes are 1" diameter by 10' overall length and 70,000 or 150,000 NMWCO. These are a direct retrofit for Koch/Abcor tubular membranes. Maximum continuous temperature rating of 140F. Volume pricing available.
Products of Classic Industrial Products, -Affiliate/Master Distributor
PVDF Tubular Membrane
PES Tubular Membranes
PES tubular UF membranes are 1" diameter by 10' overall length and are available in both 20,000 and 100,000 NMWCO. They are used primarily in food and speciality applications. They directly retrofit existing 1" tubular membranes. Maximum continuous temperature rating of 140F. Volume pricing available.
Products of Classic Industrial Products, -Affiliate/Master Distributor
PES Tubular Membranes
PVC/CPVC U-Bends
PVC/CPVC U-Bends connects all tubular membranes together. These directly retrofit existing U-Bend products. Volume pricing available.
Products of Classic Industrial Products, -Affiliate/Master Distributor
PVC/CPVC U-Bends
PVC/CPVC End Fitting Kit
PVC/CPVC End Fitting Kits connect all tubular membranes to feed and discharge manifolds. These directly retrofit existing end fitting kits. Volume pricing available.
Products of Classic Industrial Products, -Affiliate/Master Distributor
PVC/CPVC End Fitting Kit
PE Permeate Pass Kit
PE Permeate Pass Kit connects four (4) tubular membranes together for permeate collection. Directly retrofits existing permeate pass kits. Volume pricing available.
Products of Classic Industrial Products, -Affiliate/Master Distributor
PE Permeate Pass Kit
Classic Gold 1000 Cleaner
Classic Gold 1000 is a highly concentrated liquid detergent designed specifically for aiding in the cleaning of tubular membrane systems processing numerous types of wastewater. Cleaning is recommended on a REGULAR basis to prolong membrane life and maintain maximum flow rates. Classic Gold 1000 cleaner is available in 5 gallon pails, 55 gallon drum, 275 gallon tote.
Products of Classic Industrial Products, -Affiliate/Master Distributor
Classic Gold 1000 Cleaner
Classic Gold 5000 cleaner
Classic Gold 5000 is a highly concentrated liquid detergent designed specifically for aiding in the cleaning of tubular membrane systems processing numerous types of resin-based wastewater. Cleaning is recommended on a REGULAR basis to prolong membrane life and maintain maximum flow rates. Classic Gold 5000 cleaner is available in 5 gallon pails, 55 gallon drums.
Products of Classic Industrial Products, -Affiliate/Master Distributor
Classic Gold 5000 cleaner
Sponge Balls
Our sponge balls are made from the highest quality materials. Natural rubber is used as the primary component. These balls are specifically designed for aiding in the cleaning of the 1" tubular membrane systems. Use of SPONGE BALLS in conjunction with either the Classic Gold 1000 cleaner or Classic Gold 5000 cleaner is HIGHLY recommended on a REGULAR basis! Medium Aggressive Grade Sponge Balls are available in Bags of 100 balls.
products of Classic Industrial Products, -Affiliate/Master Distributor
Sponge Balls
Got a question? We’re here to help.
Filtration Systems, Inc., is a California-based water filtration systems company with international distribution!
At Filtration Systems, Inc., we manufacture the highest quality Tubular Ultra Filtration membranes in a variety of Molecular Weight Cut-Offs and Polymer types. We offer membranes either bare or in CPVC housings. We also sell all ancillary components, in PVC and CPVC, as well as cleaning chemistry for tubular ultra-filtration membranes for water filtration systems.
Our improved substrate design offers greater structural integrity for increased membrane life and performance. All CPVC housed membranes provide higher temperature capability and improved chemical resistance for water filtration systems.
If you are in need of tubular ultra filtration membranes for your company, give us a call today for more information!
Tubular ultra filtration membranes are unlike any other type of membrane geometry in that they are mechanically cleanable. With a simple “sponge ball” cleaning process, the surface of the membranes can be scoured without removing them from the system. This mechanical cleaning effectively scrubs off contaminants that can not be removed by chemical cleaning alone.
Tubular membrane filtration is a common method of removing pollutants from water in industrial wastewater filtering systems. Because industrial processes can produce dirty water containing chemicals or metals, tubular membrane filtration is used as part of an industrial water filtration system to provide good contaminant reduction.
Tubular membrane filtration is also used to clarify and/or concentrate fluid streams for various types of industrial and food grade applications.
Tubular membrane filtration is a pressure-driven cross-flow filtering method that separates suspended solids from liquids using a microporous membrane. A process solution is forced to flow along a membrane surface under pressure in this cross-flow process.
After passing through a tubular membrane filtering system, the water can be released, sent for reverse osmosis (RO), or further processed for plant reuse/recycling.
Filtration Systems, Inc. is a recognized supplier of premium tubular ultra filtration membranes and ancillary components. To better serve its customers, Filtration Systems, Inc. is now supplying cleaning agents to maintain optimum operating efficiency of your membrane systems.
The fundamental distinction between CPVC and PVC is the temperature range that each can sustain. PVC can withstand temperatures up to 140 degrees Fahrenheit, while CPVC can withstand temperatures up to 200 degrees Fahrenheit. Both CPVC and PVC will soften at those temperatures, increasing the chance of joints and pipes failing, and hence the plumbing system failing.
For prices and to place orders, you may contact us by phone, email, the contact form on this site, or by clicking the "Request Info" button.
Filtration Systems, Inc., is dedicated to providing our customers with the highest level of quality and performance at extremely competitive pricing.
When you give us a call, you will be connected directly to our friendly staff, so you can expect immediate attention to your inquiry. So don’t wait. Call now!
